How to design a FPC board?

We are profession flexible printed circuit board manufacturers,can be provide FPC flexible circuit board,FPC flexible printed circuit,HDI printed circuit board,SMD led light strip,COB led strip,FPC board design,flexible led display screen,Electronic FPC,printed circuit assembly,circuit card assembly,home facial mask beauty instrument and hair growth device circuit board and so on.

FPC description:

FPC model:HQ050

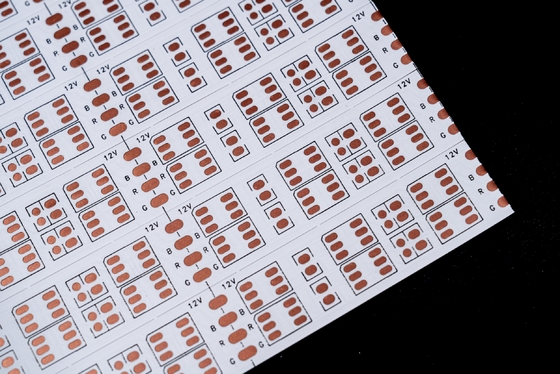

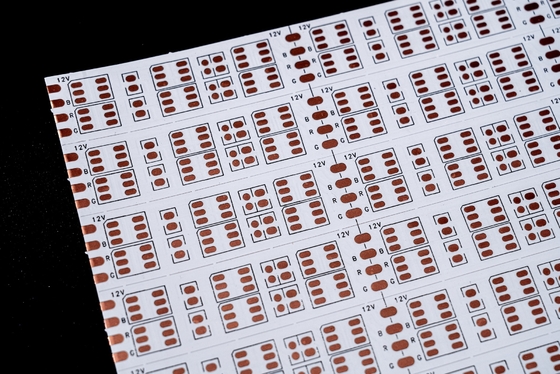

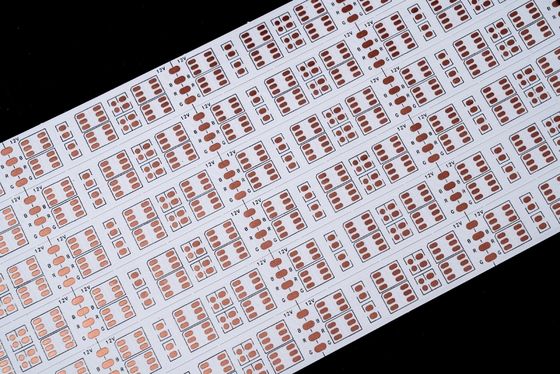

FPC Name: 5050RGB LED STRIP BOARD RGB Double row line
FPC features: Double layer board, double-sided film coating, whiteboard, black text, OSP antioxidant

I. Technical Specifications of FPC Production

1. Copper Foil Thickness

   • The thickness of copper foil directly impacts the electrical conductivity and flexibility of FPC. We offer a range of options including 12μm, 18μm, 35μm, and above, catering to different current load requirements for FPC LED strip boards.

2. Minimum Line Width/Spacing

   • To ensure high precision and reliability in FPC manufacturing, the minimum line width/spacing is strictly controlled at no less than 3mil. This parameter is particularly critical for FPC LED strip boards with dense circuitry configurations.

3. Layer Structure

   • Professional production of single-layer, double-layer, and multi-layer FPC boards, including specialized solutions for FPC LED strip board double-layer structures.

4. Material Selection

   • High-quality materials sourced from leading international suppliers to ensure optimal performance in terms of thermal resistance, mechanical strength, and electrical insulation for FPC applications.

5. Dimensional Tolerances

   • Precision manufacturing capabilities with dimensional tolerances controlled within ±0.01mm, ensuring consistent quality across all FPC production processes.

II. Comprehensive Service Process

1. Consulting Services

   • Expert technical support and personalized solutions tailored to meet specific requirements for FPC design optimization and FPC LED strip board application challenges.

2. Quotation Services

   • Accurate cost estimation and competitive pricing for both sample production and bulk orders, leveraging advanced manufacturing technologies and optimized material selection processes.

3. Professional Capabilities

   • State-of-the-art facilities equipped with cutting-edge technology from Germany, Japan, Taiwan, China, and other regions. A 20,000㎡ factory facility supported by over 800 skilled professionals ensures large-scale, high-quality FPC production.

4. Design Services

   • Full-cycle design solutions including substrate production, wiring layout, circuit prototyping, mold development, and steel mesh manufacturing for FPC and FPC LED strip boards. Extensive expertise accumulated over 16 years guarantees reliable technical support.

5. Prototype Development

   • Specialized in rapid prototyping services with a dedicated fast-track production line. For example, double-layer FPC prototypes (including FPC LED strip board variants) can be completed within 5-7 days, ensuring swift response to customer needs.

III. Quality Assurance and Customization

1. Quality Control

   • Rigorous quality assurance processes implemented at every stage of production, adhering to international standards for FPC manufacturing. Stringent testing protocols ensure minimal defect rates and consistent product performance.

2. Customized Solutions

   • Tailored design and production services for unique FPC requirements. Whether it's specialized FPC LED strip board configurations or customized circuit solutions, our team delivers innovative and reliable technical support.

3. After-Sales Support

   • Comprehensive after-sales services including technical troubleshooting, product maintenance, and continuous optimization of FPC manufacturing processes based on customer feedback.

IV. Contact Information

For inquiries regarding FPC prototyping, bulk production, or customized solutions for FPC LED strip boards, please contact our professional team:

• Email: [alanguo@hq-fpcb.com]
• Whatsapp: [+85366497978]
• Website: [www.hq-fpcb.com]
